Prefabricated cabins from sandwich panels and turnkey metal structures

General:

Brand:

PK VESTA
Country/Origin of Goods:

Russia
Place of production:

Tula, Russia
FEA code:

9406903908
Supply of building kits:

Eurasia, Africa, Middle East, Latin America
Condition of buildings:

made "to order" from scratch (new)
Delivery :

land and/or sea (euro trucks and 40ft containers)
Structural warranty:

at least 50 years old
Product warranty:

1 to 5 years
Series:

INDI (Customized on order), TYP Series (Standard after project)
Scheme and form of payment:

40%x30%x30% and 70%x30% (L/C - letter of credit, T/T - bank transfer, D/P - payment after receiving a document confirming the shipment of goods by the seller)
Delivery conditions:

EXW, FOB, CIP, DAF, DDP

Load-bearing structures

Frame technologies:

LGF (cold-formed galvanized profiles), Rigid Framing (ferrous metal welded I beams) and HYBRID systems (LGF + Rigid Framing)
Element type:

H Beams (I-Beam), C Trusses/Columns (C-Channel)
Roof type:

Gable, single-slope, extensions, superstructures and flat roofs (single-span and multi-span)
Accessories:

All high-strength bolts (except anchor bolts), full trimming package, diagonal ties and connecting elements are included. Gates, doors, windows, skylights, canopies, transparent panels, solar panels
Steel type:

С245, С350, С345, C390 and C420
Galvanizing class:

only I (275 g/m2)
Metal Suppliers:

Russian Novolipetsk Iron and Steel Works and SeverStal
Secondary Elements:

Diagonal connections, secondary framing system (C-shaped, W- shaped. and Z- shaped)
Preparation level of elements:

High (numbering of elements taking into account cutting to the desired length, punching holes and a packing list for quickly finding the right pack at the construction site)
Connection of elements:

Only 100% bolted-together connection design (high strength and normal strength bolts)
Protection of ferrous metal elements:

Powder coating and/or hot dip galvanizing
Accounting for client technology:

Included if needed

Enclosing structures

Sheathing:

sandwich panels (mineral wool, polystyrene and PIR), sheet-by-element assembly (mineral wool), corrugated sheet (cold version), ventilated facades (metal cassettes, composite cassettes and porcelain stoneware – based on the mineral wool) and membrane roof
Accessories:

trimming package (flashing, framing openings, etc.), fasteners (self-tapping screws), skylights (or transparent panels), ventilation, sectional / swing gates, double-glazed windows (up to 6 chambers), solar panels and awnings.
Thermal circuit:

internal (panels from inside the frame are mounted) or external (all panels are mounted from the outside)
Basic colors (RAL):

White (9003), Gray (7004), Blue (5005), White-Aluminum (9006), Beige (1014), Yellow (1018), Green (6002), Light Gray (9002), Brown (8017)
Mineral wool density:

not less than 100 kg/cu.m.
Sheet thickness:

0.5mm, 0.6mm, 0.7mm, 0.8mm and 1mm (galvanized)
Preparation level of elements:

High (numbering of elements taking into account cutting to the desired length, punching holes and a packing list for quickly finding the right pack at the construction site)

Projects and Documents

Nordic Base Loads:

Snow (from 180 kg/sq.m. and above), Wind (from 32 kg/sq.m. and above) and Seismic – 6 points (MSK) Technological load: from 20 kg/sq.m. and higher.
Base loads for southern countries:

Snow (not taken into account), Wind (from 48 kg / sq.m. and above) and Seismic - 7 points and above (Richter Scale) Technological load: from 20 kg / sq.m. and higher.
Main projects:

assembly diagrams and instructions, diagrams of columns for the foundation, structure project (metal structures), cladding project (facade solutions), technical passport. Taking into account the state or commercial expertise.
Degree of fire resistance of the building:

IV-I
Certification:

ISO
Disclaimer:

when exporting buildings to other countries, different building codes are taken into account (European, American) and any other at the place of construction (Middle East, Africa, Asia, Latin America, etc.)

Making an I-shaped (H) welded beam

Metal cutting:

into strips of the desired length on a powerful high-precision laser machine
Assembly:

workpieces on the base
Welding:

all main elements
Process:

straightening elements on the mill
Partial welding:

bases of columns and stiffeners
Final preparation:

sand blasting / shot blasting / hot dip galvanizing
Painting:

included (upon request)
Factory primer:

included (20, 40, 60, 80, 100 microns and above)
Package:

in packs for euro trucks or 40 feet for containers

Making a C-profile

Process:

cold-formed metal profiling
Cutting and punching holes:

included (in auto mode)
Painting:

not included (high anti-corrosion properties)
Package:

in packs for euro trucks or 40 feet for containers

With the rotational method of work, the construction of a large object can be carried out continuously. With such a schedule, the deadlines for the delivery of the object are reduced, you can complete the work quickly.

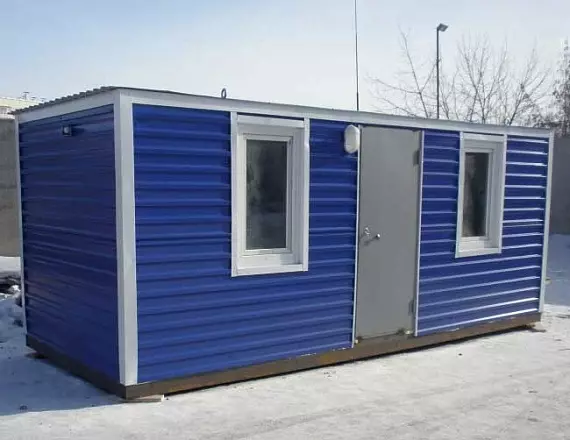

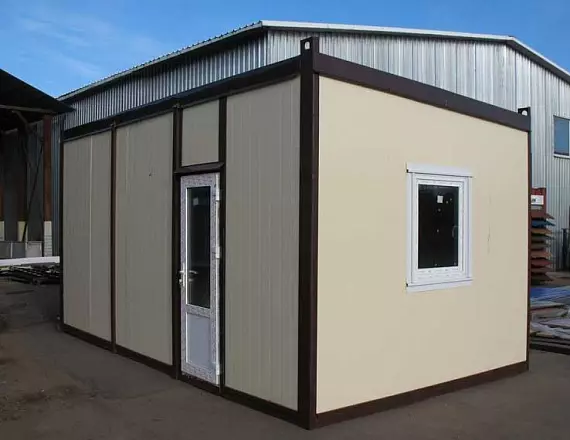

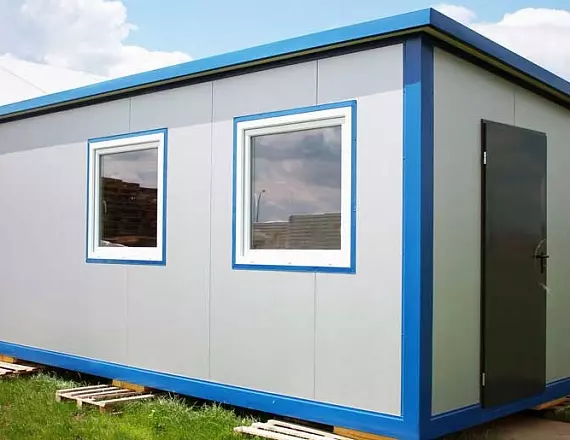

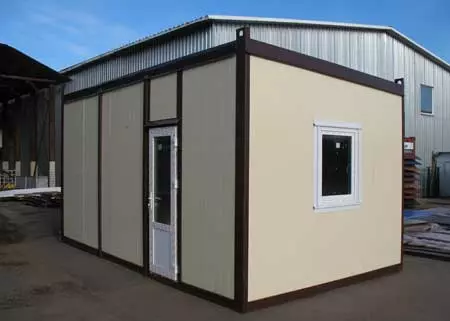

Change houses are built on frame technology. A modern change house will help create a team of builders acceptable conditions for rest, good sleep. Structures are also for other purposes: a warehouse, a first-aid post, a foreman, a place for storing power tools, a canteen. technologies.

It allows you to significantly reduce construction costs. The designs of prefabricated change houses are used by summer residents in the future. They are valued for affordable cost and mobility. If necessary, buildings are equipped not only with a toilet, but also with a shower. Household and climatic equipment is installed.

Small architectural forms are used for various purposes:

instead of guest and country houses in garden and suburban areas;
in hunting farms, at fish bases as temporary structures that do not require permission;
as medical points;
instead of shopping kiosks for various purposes;
as a garage for cars and trucks.

Change houses are quickly and simply mounted, work can be carried out all year round. The steel buildings do not require a concrete monolithic foundation. All communications are brought into the buildings, life support systems are installed.

Prefabricated change houses - the most profitable solution. Durable and warm designs are designed for long-term operation. The facilities fully comply with current regulations for temporary and permanent residence and are suitable for other uses.

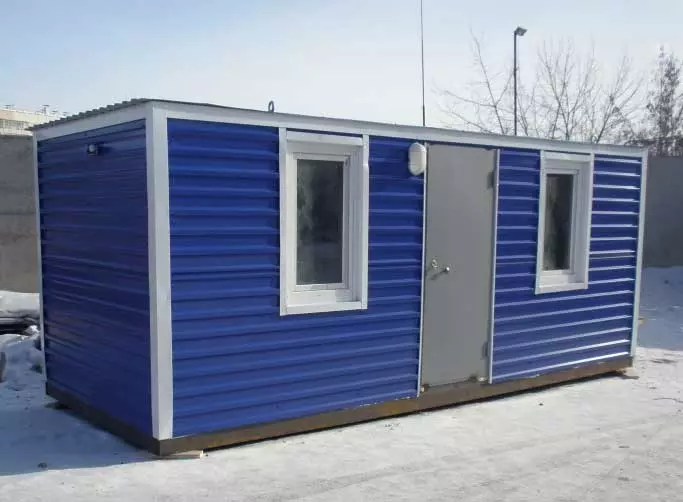

Construction of a prefabricated house

The steel building is erected on the basis of a frame made of rolled steel. The metal structure is sheathed with sandwich panels. Buildings are erected in any climatic zones and soil of different bearing capacity. Change houses can be installed in seismically active regions.

The galvanized cold-formed profile is resistant to corrosion damage. Panels retain heat well. At the construction site, prefabricated elements manufactured in the factory with high precision are mounted in a short time.

Prefabricated buildings are not afraid of temperature contrast, moisture does not accumulate on them, fungus does not multiply. Change houses meet safety standards, are made of eco-friendly materials. Front registration can be made any at the request of the customer.

Calculation of the cost of construction of amenity premises

Each customer can independently determine the approximate amount of expenses using an online calculator. You can use the innovative WebSteel® service without special training.

The calculation program posted on the website of PC VESTA was created on the basis of standard projects. In which the necessary adjustments are automatically made. It is enough to enter the main parameters of the future building.

A functional service for online design will help minimize costs. By changing the data, you can choose the best project within the allocated budget.

Make an inquiry Price a building online

Choosing PK VESTA you will receive:

1.   The new philosophy and innovative business model of the “Smart Techno Design” allowing a client to quickly visualize pre-engineered steel buildings online in new service WebSteel, calculate main building costs instantly with automatic consideration of climatic zones (snow, wind and seismic), receive basic sketches with a detailed technical specification and order a turnkey building kit online from the factory to anywhere in the world.
2.   Unique building solutions from an old factory in the famous Russian industrial city of Tula (metal craftsmanship since the 17th century) offered specifically for you to design and manufacture energy-efficient custom prefabricated steel buildings made out of lightweight metal structures.
3.   Particular emphasis on the quality of our products, the high safety and reliability of our production facilities with the high automation of working processes and the latest IT technologies in the 24/7 format of customer service via the Internet in global markets (Eurasia, Africa, the Middle East and Latin America)

Technology comparison:

List	LSGF (profiles)	Rigid framing (welded beams)	Concrete

1) Metal consumption of Steel framing	Low	Medium	High
2) Load-bearing capacity	High	High	High
3) Complexity of manufacturing	Low	Medium	Medium

4) Complexity of erection	Low	Medium	Medium
5) Anticorrosion properties	High	Low	Low
6) Foundation costs	Low	Medium	High

7) Capacity in one vehicle	High	Medium	Low
8) Welding process	Missing	Available	Missing
9) Level of fire resistance	Medium	High	High

10) Manufacturing defect rate	The error in punching holes, cutting elements to the desired length - low.	The effect of mushroom and crescent after welding at the factory - medium / high.	Concrete chips, cracks, gaps and rebar displacement - low / medium.
11) Frequency of use in buildings with high humidity and ammonia aggressive environments	High	Low	Low

Comparison with competitors:

List	Factory PK VESTA	Competitors

1) Working experience in Russia and abroad	Since 1991 (without changing the name and phone numbers)	Since 2000 (many plants were founded later)
