Steel buildings from city Tula, Russia
Our factory PK VESTA offers custom pre-engineered buildings on order based on light steel structures for a wide range of international clients from different segments of global construction markets (Eurasia, North and Latin America, the Middle East and Africa) Our steel buildings are distinguished by a high level of quality, efficient design solutions, high energy efficiency, environmental friendliness and deep customization of the building (any geometric dimensions, the most advanced building technologies based on LSGF, classic Rigid Framing, HYBRID systems, effective Flat Roof, gable and lean-to structures, number of storeys up to 3 floors, the presence of a beam crane, any enclosing cladding structures for facades, etc.)
All products are manufactured on the latest European highly automated state-of-the-art equipment, taking into account modern international quality standards and building codes. We offer you reliable global solutions, time-tested since 1991 and joint work in Russia and abroad all based on the design and manufacture of custom prefabricated steel buildings (industrial, commercial, agricultural, military, sports, religious and municipal)
Basic warranty
Choosing a reliable building from PC VESTA, you get a quality guarantee from the brand and the most comfortable conditions during the period of ownership of the building. For new buildings purchased on the territory of the Russian Federation, by default, a 1 year warranty is provided for a set of factory-made buildings and 25 years of operation
Extended Warranty
It is also possible to get a 5-year guarantee for a steel building with an individual account for the operation of facilities in different regions of Russia and international markets (the presence of the ocean or water resources, high levels of humidity indoors, the purpose of the building, certain technology, etc.)

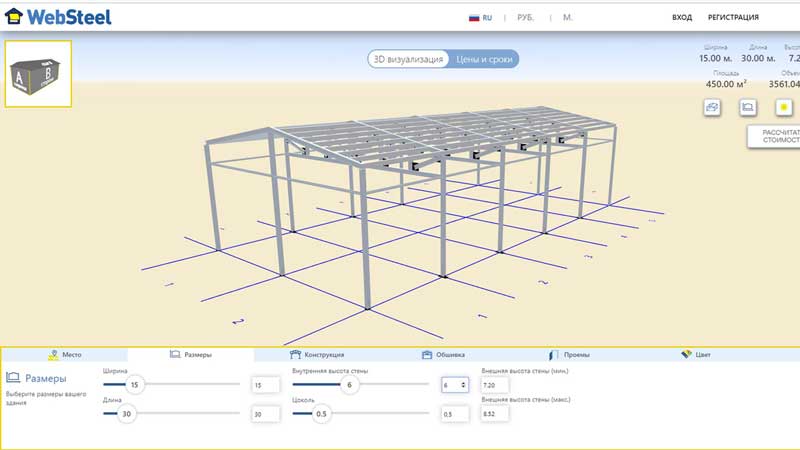

Following a new concept, PK VESTA has created opportunities for international customers to design individual buildings themselves in the new WebSteel online service via the Internet withing the wide range of technological capabilities of the plant, followed by ordering a building kit anywhere in the world.
Depending on the design decisions, it is possible to create any type of steel structure for free: gable, lean-to, adjacent to the old building, flat roof, buildings with elevations, etc.
The client can choose hundreds of options for individual color combinations based on the RAL catalog or textures for wood, stone or brick for walls and roofs (panel, horizontal strip, checkerboard pattern, alternating colors in several rows, etc.)

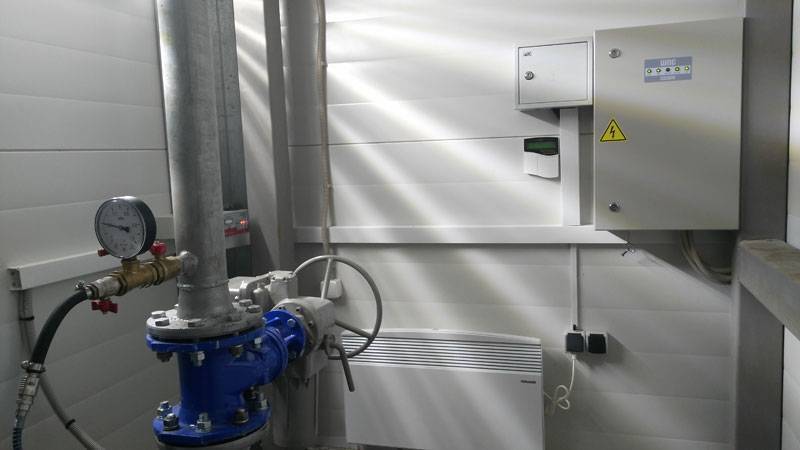

Inside the building, it is possible to install any of the most common engineering networks, taking into account their load on the supporting structures to meet the requirements of the overall project and improve the quality of people’s work.

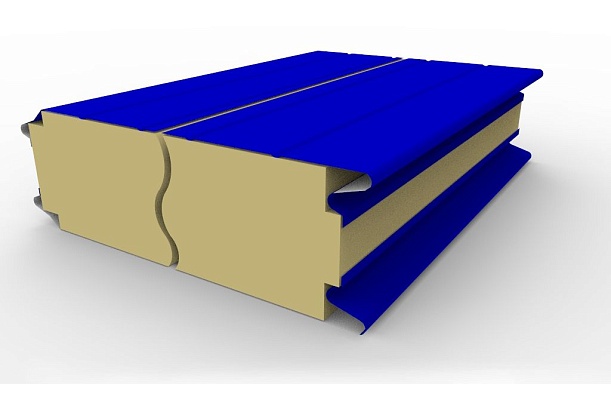

Classic sandwich panels based on non-combustible mineral wool insulation with the standard thickness of 100 mm (density - at least 110 kg / cubic meter) have one of the lowest thermal conductivity coefficients among similar materials (up to 0.05 W / Mk) or 32 dB (air noise insulation index)

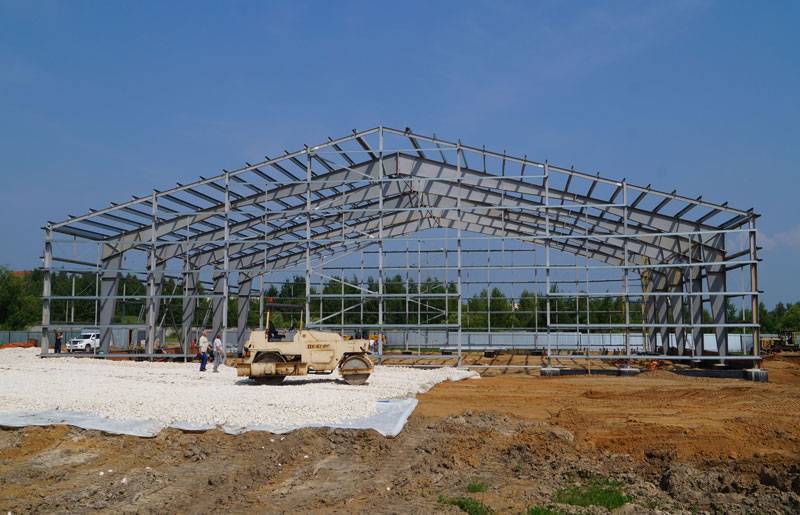

A client receives a fantastic free single span of up to 30m wide in Northern countries with snow load for structures made out of LSGF (or 36m in Southern countries with minimal or no snow loads) or up to 90m wide based on Rigid Framing technology.
Steel grade
S245 and S350 (yield strength)Grade of galvanizing
1st class (275 g/sq.m.) PremiumMetal consumption
From 20kg / sq.m. (Northern countries)Span and height
Up to 36m wide (without columns) Up to 20m height (by inner wall)Fire resistance
To the IV degree (panels outside) III-I degree (panels inside)Bay spacing
3-6 m. (between columns)
Steel grade
S245 (yield strength)Grade of galvanizing
1st class (275 g/sq.m.) PremiumMetal consumption
From 26kg / sq.m. (Northern countries)Span and height
Up to 100m wide (without columns) Up to 20m height (by inner wall)Fire resistance
To the IV degree (panels outside) III-I degree (panels inside)Bay spacing
6-12 m. (between columns)
Steel grade
S350 (yield strength)Grade of galvanizing
1st class (275 g/sq.m.) PremiumMetal consumption
From 15kg / sq.m. (Northern countries)Span and height
Up to 30m wide (without columns) Up to 12m height (by inner wall)Fire resistance
To the IV degree (panels outside) III-I degree (panels inside)Bay spacing
3-6 m. (between columns)
It is the most common and economical steel structure in global markets. 15% cheaper than a single slope roof. It is used in many segments of international industries (hangars, warehouses, offices, shops, workshops, etc.). Without strict requirements for appearance, it is often approved and agreed with the local architectural department.
Filler
Mineral wool, polystyrene or PIR (polyisocyanurate)Cladding thickness
От 40 до 250mmСoating
Polyester, Plastisol, Olivinyl Fluoride,Prism Colorcoat Prisma ™, Granite® CLOUDY
Sheet thickness
0.5-0.7 mmColor spectrum
RAL, Color, ATASteel catalogsWidth/Length
От 1-1.2m / От 0.5 до 12m

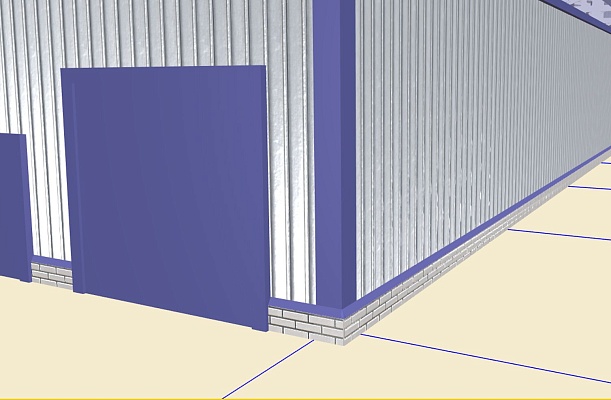

Filler
No (cold version)Cladding thickness
0.5-0.7mmColor spectrum
RAL, Color, ATASteel catalogsWidth/Length
Any

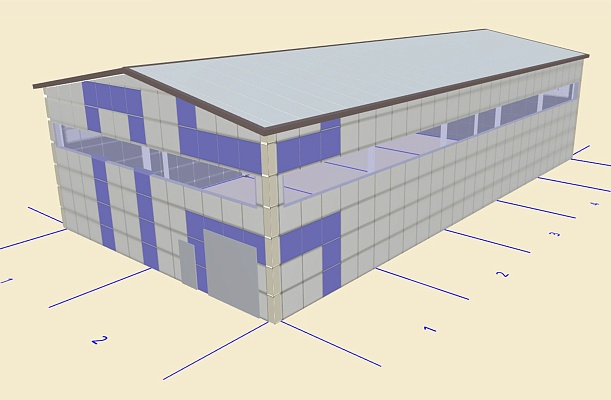

Types
Fiber cement board, Composite cassettes, Metal cassettes, Porcelain cassettesFiller
Mineral woolCladding thickness
50, 100, 150, 200 и 250mmSheet thickness
0.5-0.7 mmColor spectrum
RAL, Color, ATASteel catalogsWidth x Height
0.59х1.56, 1.19х1.19, 1.15х1.15, 1.15х2, 1.15х3, 0.323х0.75, 0.323х1.55

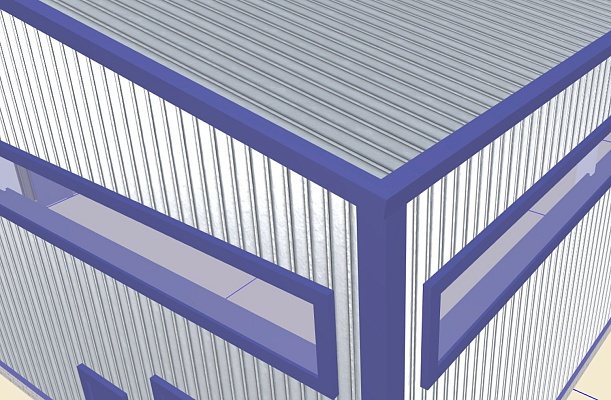

Filler
Mineral woolCladding thickness
От 40 до 250mmCoating
Polyester, Plastisol, Olivinyl Fluoride,Prism Colorcoat Prisma ™, Granite® CLOUDY
Sheet thickness
0.5-1.0 mmColor spectrum
RAL, Color, ATASteel catalogsWidth/Length
Any

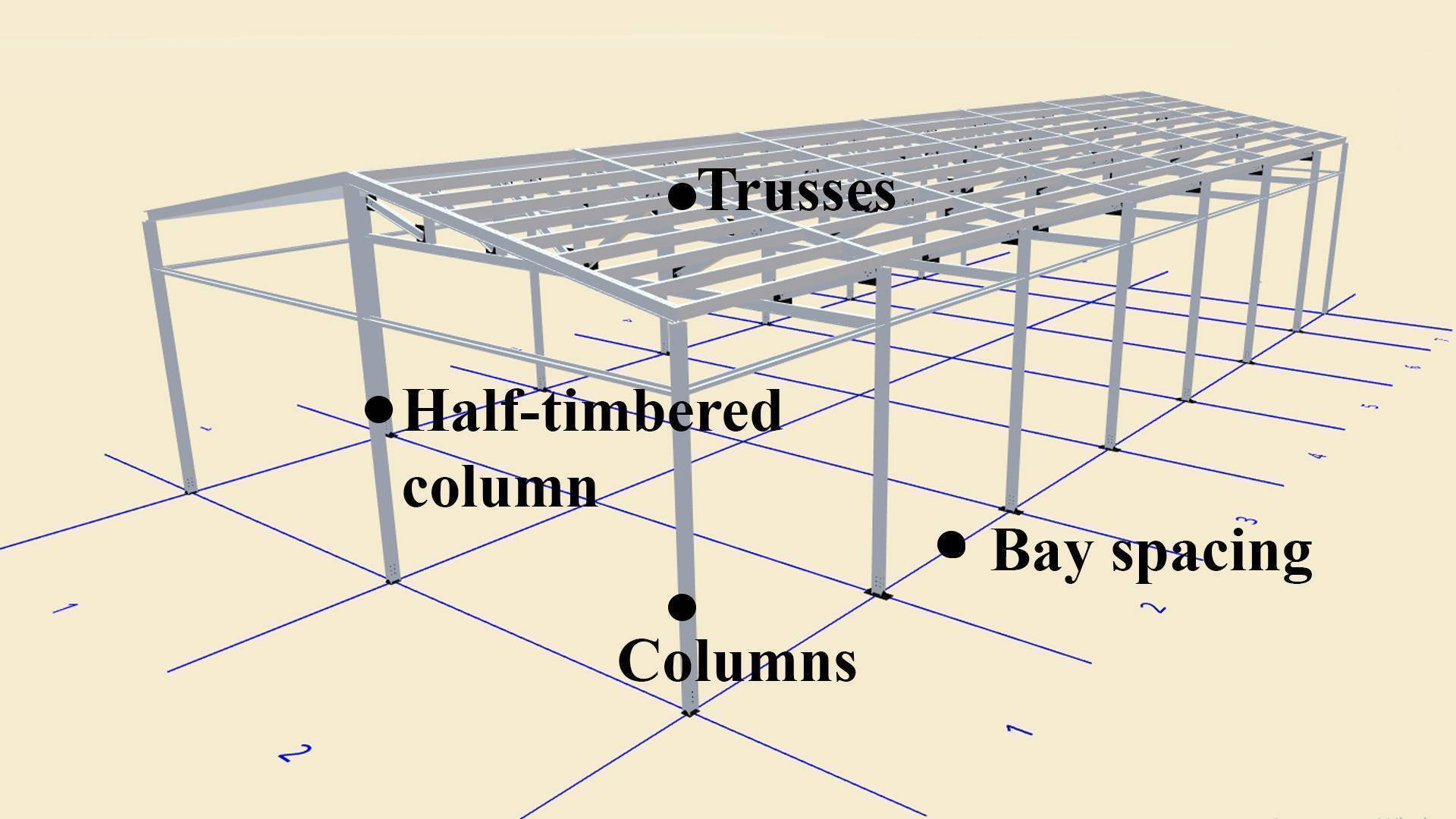

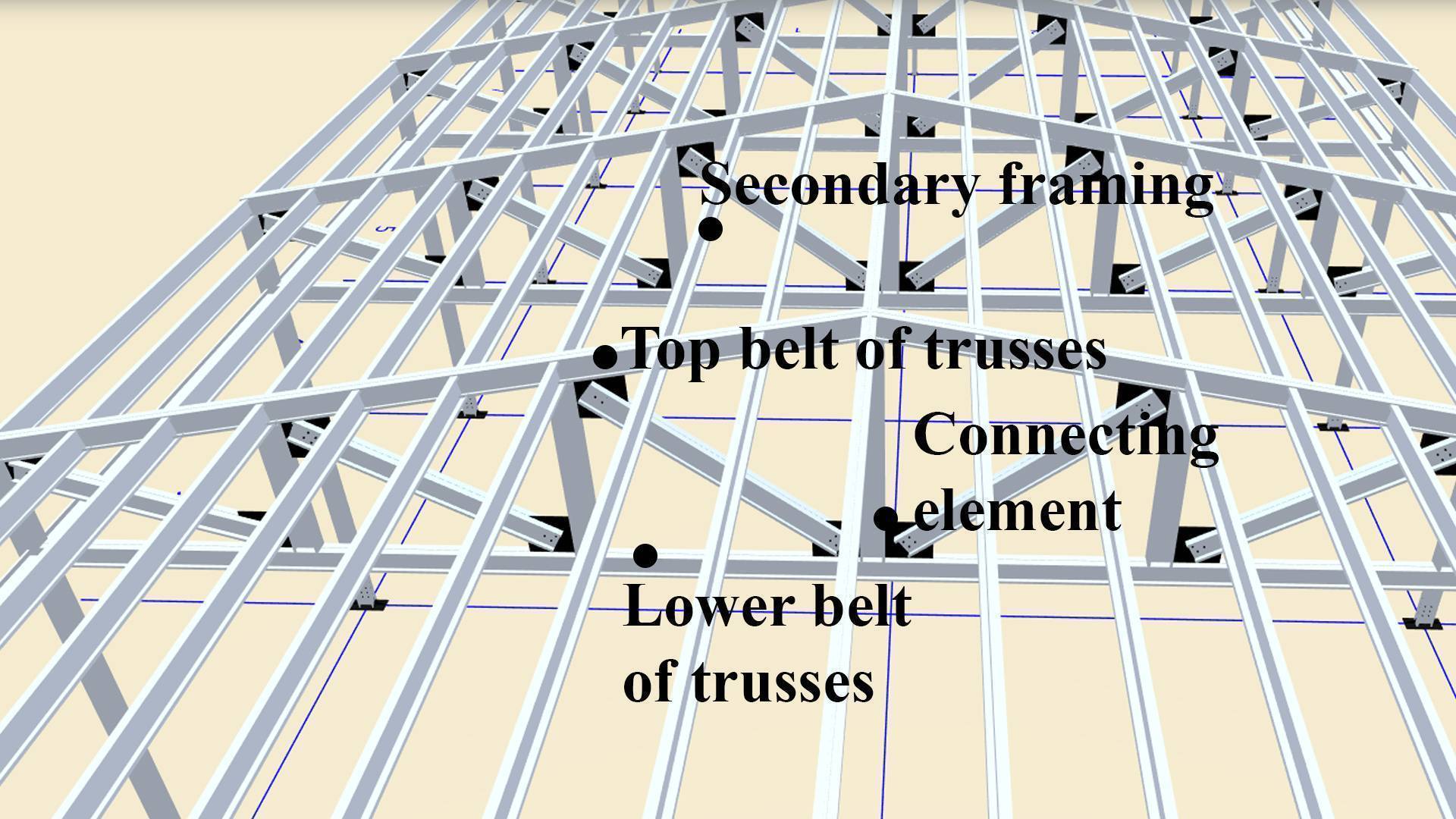

Steel frame layout
Despite almost the same strength indicators (tensile, compression, shear, bending, etc.), LSGF frames (cold-formed galvanized profile) can minimize building metal consumption by 20-30% when compared with frames made out of a classic welded or hot-rolled beam with spans up to 30m wide and 6m high (inside the wall)
After many years of applied and scientific research, the PK VESTA factory for the first time since 2011 came close to fully automating customer service via the Internet based on the WebSteel online cloud service.
In 2018, PK VESTA received an innovative opinion on assessing the fire resistance limit for buildings made out of LSGF at the head of the well-known Russian expert organization on fire safety - the Research Institute of Fire Defense (FSBI VNIIPO) with the requirements for certain changes in design decisions.
WebSteel - innovative i-cloud 24/7 service, which was created in 2011. in the Russian city of Tula on the basis of a new philosophy of serving customers online in construction idustry - "Smart Techo Design"
The PK VESTA plant digitized many countries in Eurasia, the Middle East and Africa, which allowed the client to almost instantly determine the combination of basic climatic zones (snow, wind and seismic loads) that directly affect the calculation and determination of the specific metal consumption at the place of the click on the construction of the future building in the WebSteel system individual building.
Depending on the selected building dimensions, the WebSteel system itself selects and advises the optimal technology for the production of steel frames (LSGF, HYBRID or Rigid framing), which often allows the client to save on building costs up to 20-30%.
The most valuable feature of the WebSteel system is the automatic calculation of the metal consumption of the load-bearing steel frames in real time on a web server with an error of 3 to 10%
We have implemented an innovative browser-based 3D engine for instant visualization of individual buildings in real time, completely leaving the old resource-intensive Flesh developments.
The parameterized system environment allows you to process all selected building parameters and create a single online document with a detailed technical task, a detailed commercial offer (prices for design, building, installation, foundation, floors and delivery) and basic sketches.
Quality
The steel used in our lightweight metal structures has the highest strength-to-weight and tensile strength ratios among other traditional building materials in the world. Plus, steel is the leading frame material for buildings and infrastructure, with a market share in many developed countries of more than 50% in the non-residential and multi-story residential industry (Steel Recycle Institute)
The engineering group of the PK VESTA plant necessarily takes into account the basic loads at the construction site (snow, wind and seismic) in the design scheme of the building, which can reach the maximum design values (snow load - up to 600 kg / sq., Wind load - up to 100 kg / sq. m. and seismic load - up to 10 points on the Richter Scale)
