Construction of buildings for small nuclear power plants from PC Vesta in Africa, the Middle East, Eurasia and Latin America

General:

Brand:

PK VESTA
Country/Origin of Goods:

Russia
Place of production:

Tula, Russia
FEA code:

9406903908
Supply of building kits:

Eurasia, Africa, Middle East, Latin America
Condition of buildings:

made "to order" from scratch (new)
Delivery :

land and/or sea (euro trucks and 40ft containers)
Structural warranty:

at least 50 years old
Product warranty:

1 to 5 years
Series:

INDI (Customized on order), TYP Series (Standard after project)
Scheme and form of payment:

40%x30%x30% and 70%x30% (L/C - letter of credit, T/T - bank transfer, D/P - payment after receiving a document confirming the shipment of goods by the seller)
Delivery conditions:

EXW, FOB, CIP, DAF, DDP

Load-bearing structures

Frame technologies:

LGF (cold-formed galvanized profiles), Rigid Framing (ferrous metal welded I beams) and HYBRID systems (LGF + Rigid Framing)
Element type:

H Beams (I-Beam), C Trusses/Columns (C-Channel)
Roof type:

Gable, single-slope, extensions, superstructures and flat roofs (single-span and multi-span)
Accessories:

All high-strength bolts (except anchor bolts), full trimming package, diagonal ties and connecting elements are included. Gates, doors, windows, skylights, canopies, transparent panels, solar panels
Steel type:

С245, С350, С345, C390 and C420
Galvanizing class:

only I (275 g/m2)
Metal Suppliers:

Russian Novolipetsk Iron and Steel Works and SeverStal
Secondary Elements:

Diagonal connections, secondary framing system (C-shaped, W- shaped. and Z- shaped)
Preparation level of elements:

High (numbering of elements taking into account cutting to the desired length, punching holes and a packing list for quickly finding the right pack at the construction site)
Connection of elements:

Only 100% bolted-together connection design (high strength and normal strength bolts)
Protection of ferrous metal elements:

Powder coating and/or hot dip galvanizing
Accounting for client technology:

Included if needed

Enclosing structures

Sheathing:

sandwich panels (mineral wool, polystyrene and PIR), sheet-by-element assembly (mineral wool), corrugated sheet (cold version), ventilated facades (metal cassettes, composite cassettes and porcelain stoneware – based on the mineral wool) and membrane roof
Accessories:

trimming package (flashing, framing openings, etc.), fasteners (self-tapping screws), skylights (or transparent panels), ventilation, sectional / swing gates, double-glazed windows (up to 6 chambers), solar panels and awnings.
Thermal circuit:

internal (panels from inside the frame are mounted) or external (all panels are mounted from the outside)
Basic colors (RAL):

White (9003), Gray (7004), Blue (5005), White-Aluminum (9006), Beige (1014), Yellow (1018), Green (6002), Light Gray (9002), Brown (8017)
Mineral wool density:

not less than 100 kg/cu.m.
Sheet thickness:

0.5mm, 0.6mm, 0.7mm, 0.8mm and 1mm (galvanized)
Preparation level of elements:

High (numbering of elements taking into account cutting to the desired length, punching holes and a packing list for quickly finding the right pack at the construction site)

Projects and Documents

Nordic Base Loads:

Snow (from 180 kg/sq.m. and above), Wind (from 32 kg/sq.m. and above) and Seismic – 6 points (MSK) Technological load: from 20 kg/sq.m. and higher.
Base loads for southern countries:

Snow (not taken into account), Wind (from 48 kg / sq.m. and above) and Seismic - 7 points and above (Richter Scale) Technological load: from 20 kg / sq.m. and higher.
Main projects:

assembly diagrams and instructions, diagrams of columns for the foundation, structure project (metal structures), cladding project (facade solutions), technical passport. Taking into account the state or commercial expertise.
Degree of fire resistance of the building:

IV-I
Certification:

ISO
Disclaimer:

when exporting buildings to other countries, different building codes are taken into account (European, American) and any other at the place of construction (Middle East, Africa, Asia, Latin America, etc.)

Making an I-shaped (H) welded beam

Metal cutting:

into strips of the desired length on a powerful high-precision laser machine
Assembly:

workpieces on the base
Welding:

all main elements
Process:

straightening elements on the mill
Partial welding:

bases of columns and stiffeners
Final preparation:

sand blasting / shot blasting / hot dip galvanizing
Painting:

included (upon request)
Factory primer:

included (20, 40, 60, 80, 100 microns and above)
Package:

in packs for euro trucks or 40 feet for containers

Making a C-profile

Process:

cold-formed metal profiling
Cutting and punching holes:

included (in auto mode)
Painting:

not included (high anti-corrosion properties)
Package:

in packs for euro trucks or 40 feet for containers

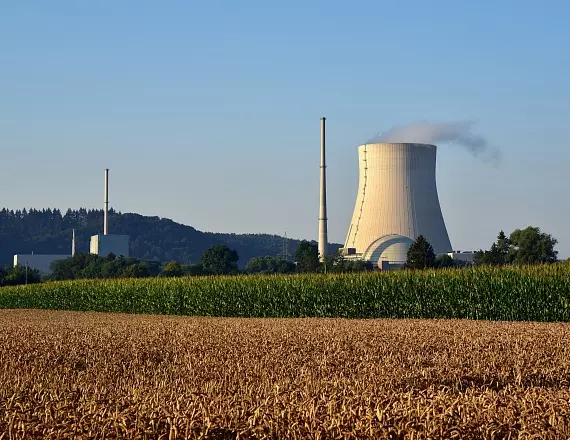

Design of nuclear power plants in Russia

PK VESTA carries out the design of nuclear power plants in Russia and anywhere in the world using modern Rigid Framing and LSF technology. We build modern, functional steel buildings on a turnkey basis that meet the construction requirements and safety standards for objects of this type. Our company is a manufacturer, we offer individual terms of cooperation and prices are among the best on the market.

Structural features

In the construction of nuclear power plants, the focus is on safety. The structure must be durable, reliable, fireproof, withstand temperature extremes, snow and wind loads. Despite the fact that such facilities are being built in regions with low seismic activity, this factor is also taken into account.

A nuclear power plant is a complex of buildings of various types and purposes. The nuclear power industry today uses pre-fabricated construction technologies, as they can reduce construction costs by up to 50% and significantly reduce the time. If earlier the construction of a nuclear power plant took 5-10 years, today even a complex facility can be built in 3-6 months, and work can be carried out at any time of the year.

Today, there is a trend in the world for the construction of small power plants that can be built by private investors. Such commercial projects can bring good profit when using Rigid Framing and LSTC technology for construction. Buildings made of metal structures in terms of their performance are not inferior to capital ones, and in some aspects (energy efficiency, mobility, lightness of construction, etc.) they win.

Stages

The process of building a nuclear power plant from LSTK includes several stages:

Complex design.
Production of structural elements at the PK Vesta plant.
Delivery to the object.
Arrangement of the foundation and installation of the frame.
Cladding with sandwich panels
Installation of internal partitions, stairs, windows, doors.
Roof installation.
Laying of engineering networks.

Our company performs a full range of turnkey works based on a part of services from third-party partners. We will design a nuclear power plant in accordance with your requirements and budget, we will perform installation, laying of communications, and, if necessary, additional finishing and insulation.

The cost of building a nuclear power plant

Modern construction technologies make it possible to erect a steel building of any complexity and purpose, the cost of which is an order of magnitude lower than capital ones. We design nuclear power plants in accordance with the customer's budget, we offer solutions that allow us to build energy-efficient, reliable and functional buildings with minimal investment. Thanks to a wide network of international partners, we can build a nuclear power plant in any corner of the world in the shortest possible time.

You can calculate the cost of a nuclear plant using the WebSteel®service located on the PK VESTA website. The service allows you to perform all the necessary calculations, visualize the object, receive the necessary documentation and be serviced completely online 24/7. To get additional advice or order a project, fill out the form on our website or call our managers by phone.

Make an inquiry Price a building online

Choosing PK VESTA you will receive:

1.   The new philosophy and innovative business model of the “Smart Techno Design” allowing a client to quickly visualize pre-engineered steel buildings online in new service WebSteel, calculate main building costs instantly with automatic consideration of climatic zones (snow, wind and seismic), receive basic sketches with a detailed technical specification and order a turnkey building kit online from the factory to anywhere in the world.
2.   Unique building solutions from an old factory in the famous Russian industrial city of Tula (metal craftsmanship since the 17th century) offered specifically for you to design and manufacture energy-efficient custom prefabricated steel buildings made out of lightweight metal structures.
3.   Particular emphasis on the quality of our products, the high safety and reliability of our production facilities with the high automation of working processes and the latest IT technologies in the 24/7 format of customer service via the Internet in global markets (Eurasia, Africa, the Middle East and Latin America)

Technology comparison:

List	LSGF (profiles)	Rigid framing (welded beams)	Concrete

1) Metal consumption of Steel framing	Low	Medium	High
2) Load-bearing capacity	High	High	High
3) Complexity of manufacturing	Low	Medium	Medium

4) Complexity of erection	Low	Medium	Medium
5) Anticorrosion properties	High	Low	Low
6) Foundation costs	Low	Medium	High

7) Capacity in one vehicle	High	Medium	Low
8) Welding process	Missing	Available	Missing
9) Level of fire resistance	Medium	High	High

10) Manufacturing defect rate	The error in punching holes, cutting elements to the desired length - low.	The effect of mushroom and crescent after welding at the factory - medium / high.	Concrete chips, cracks, gaps and rebar displacement - low / medium.
11) Frequency of use in buildings with high humidity and ammonia aggressive environments	High	Low	Low

Comparison with competitors:

List	Factory PK VESTA	Competitors

1) Working experience in Russia and abroad	Since 1991 (without changing the name and phone numbers)	Since 2000 (many plants were founded later)
2) Owned (industrial and storage facilities with a jobsite and utilities)	Available	Missing (many plants rent facilities)
3) Metal consumption of steel framing	Low (28-31 kg/sq.m. – Northern countries)	Medium (32-35
